Every single tire casing will receive a thorough inspection identifying potential defects.Using Melion multiple methods to inspect tires for defects and ensure only high quality casings to be retreaded.If repairs are needed, they are administered after inspection.
| Description | Specification |
|---|---|
| Machine Model | ML-INS-22.5 |
| Tire Sizes | 15”, 16”, 20”, 22.5” |
| Dimension | 1100*750*850 mm |
| Power | 1.5 kw |
| Min. Air Supply | 0.65 Mpa |
| Weight | 200 kg |
| Manufacturer | MELION INDUSTRY |
As a tire retreading machines specialized manufacturing supplier who providing Turn-Key Service, Melion Industry company provides customers with complete solutions all the time, including professional marketing planning, production line procedure analysis, suitable raw materials supply, free technical training and so on.
Complete Set Tire Retreading Equipment Supplies:
Initial Inspection Machine, Buffing Machine, Dust Collector, Multi-functional Repair Stand, Extruder Machine, Cement Mixing Tank, Building Machine,Envelope Spreader,Rims Mounting Machine, Monorail, Curing Chamber, Pressure Test Machine etc.
Rubber Materials
Application and Features

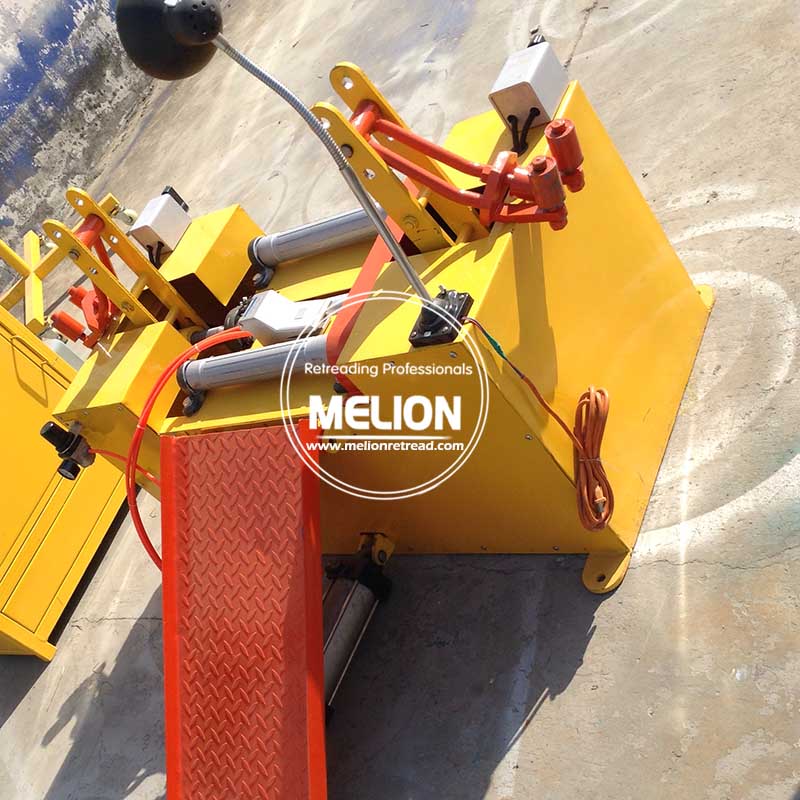

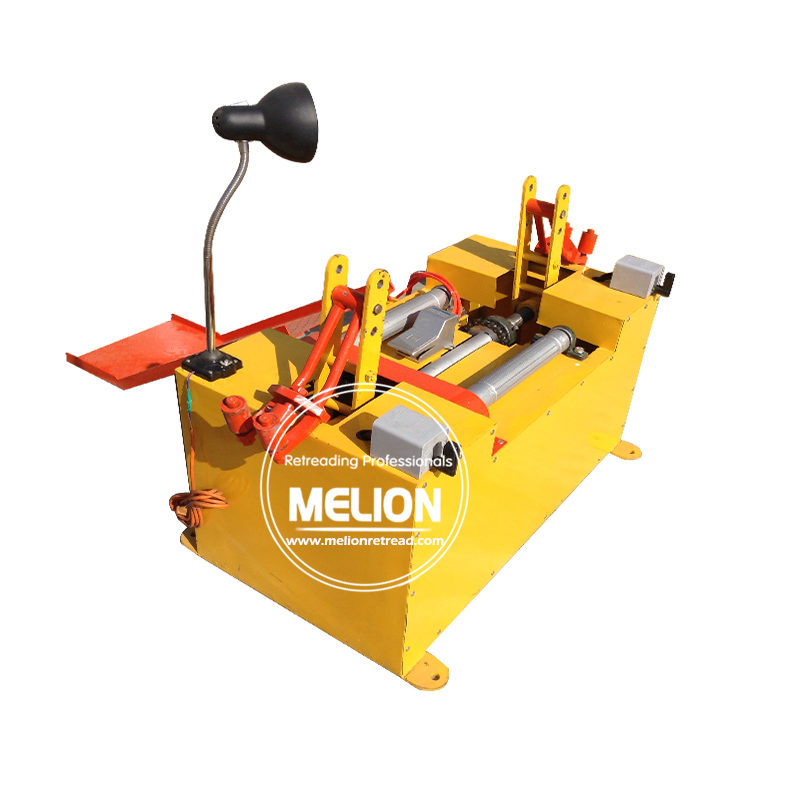

The MELION Tire Inspection Machine is designed for inspect tire inside if there is hole, damage and nails during the pre-curing retreading process.
Application Scope
It is compatible with all sizes of Steel Tires and Nylon Tires with different ring sizes (16”, 20”,22.5”).
Structure and Principle
The Melion Tire Inspection Machine consists of Main Body, Work Plate, Tire Lifting Cylinder, Spreading Arms, Rotating Shafts, Light and Foot Switch.
