Tire Extruder Gun

Description

Functions of Melion Tyre Retreading Extruder Gun:

Use to fill the holes and small concaves in the tyre surface with the filling rubber.
Automatic temperature control function.
Stabilize out-gluing period, light and handy, easily control.
Feeder worm specifically designed for heating up, compressing, and mixing rubber.
Welcome special order and quality.

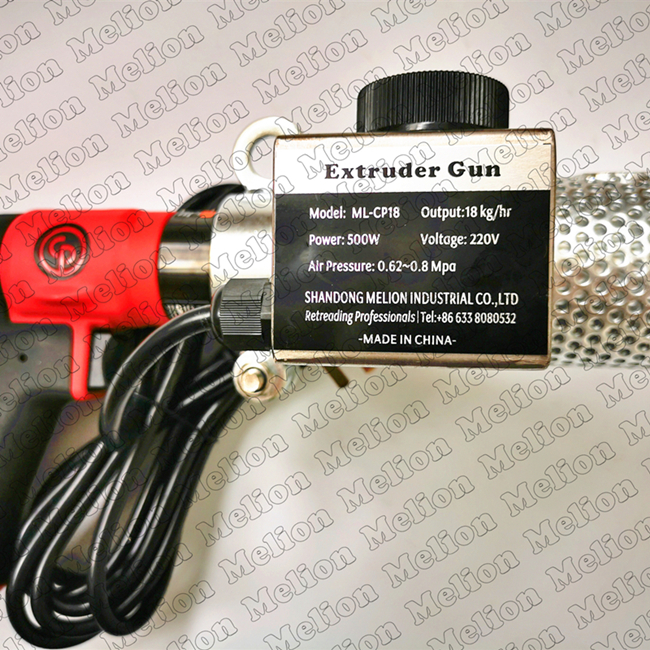

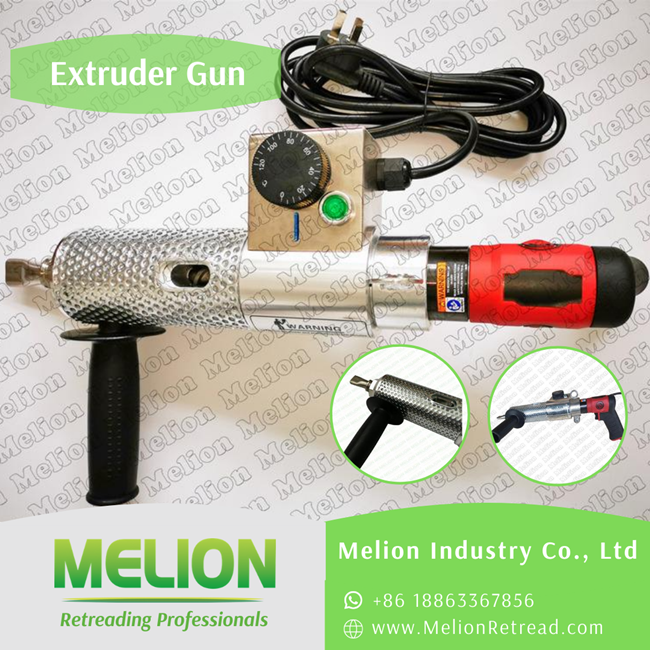

Extruder Gun

Model: ML-CP18
Rubber Output: 18Kg/hr
Pneumatic powered by: CP (Chicago Pneumatic)
Grade: Standard
Voltage: AC 220V, 50Hz
Power: 0.5 Kw
Temperature: 0∼120℃
Air Pressure:0.62-0.8Mpa
Made by Melion Industry

Extruder Gun

Model: ML-CP24
Rubber Output: 24Kg/hr
Grade: Industrial
Pneumatic powered by: CP (Chicago Pneumatic)
Voltage: AC 220V, 50Hz
Power: 0.55 Kw
Temperature: 0∼120℃
Air Pressure:0.62-0.8Mpa
Made by Melion Industry

How to process:

After Buffing used tyre tread,it requires to fill Rubber Rope(produced by Extruder Machine or handhold extruder Gun) on the damage.Even in small injuries it is critical that the injury is cleaned and filled. If this is not done, severe rust, separation and steel cable looseness could take tyre out of service. The injury should be inspected, and then cleaned out with a carbide cutter. After cementing the injury, a vulcanizing rubber stem should be applied to “fill” the injury. This would create a permanent repair that maximizes tyre life.

Rubber extruded from Extruder Gun

Operate & Maintain Introduction of Melion Extruder Gun:

Clear out the rest rubber from the mouth of Extruder Gun before using.
Put on the power supply and preheating 5 minutes before using.
Add 2ml. Air Tool Lubricant to the Extruder Gun after operating.

What We Supply Also

Complete Set Tire Retreading Equipment Supplies:

Initial Tire Inspection Machine, Tire Buffing Machine, Rubber Dust Collector, Multi-functional Tire Repair Stand, Extruder Machine, Cement Mixing Tank, Tread Building Machine,Envelope Spreader,Rims Mounting Machine, Monorail, Curing Chamber, Pressure Test Machine etc.

Rubber Materials:

Precured Tread Rubber (PTR), Cushion Gum (Bonding Gum), Rubber Strip etc.

Tire Retreading Machines

Our Services

As a tire retreading machines specialized manufacturing supplier who providing Turn-Key Service, Melion Industry company provides customers with complete solutions all the time, including professional marketing planning, production line procedure analysis, suitable raw materials supply, free technical training and so on.

Photo Gallery of onsite Installation & Training:
