With advances in state-of-the-art repair materials and repair methods, many of these tires can be routinely repaired and in most cases can be retreaded when the original tread is worn off. The Repair Tire Stand is where any surface injury is treated using effective material and tools for grinding and patching.
Simple Description
Multi-functional Tire Repairing Stand (Machine) is specially designed for pre-cure retreading process. It is an integrated machine which could complete tire inspection, fine buffering, filling rubber, brushing rubber cement and cushion gum with one single machine. It has gained great popularity with its easy access and high efficiency.
Structure and Principle:
The MELION Multi-functional Tire Repairing Stand (Machine) consists of main frame, working arm, lifting arm, rollers, lifting roller, pneumatic unit and electric controller. Drive roller and driven roller are mounted on the working arm. The motor drives the reducer and then the reducer drives the driving roller to rotate the tire which makes it convenient for repairing. Lifting roller is mounted on the lifting arm which is driven by air cylinder. The lifting roller lifts the tire up and down easily and makes convenience for repairing.
Tire on Multifunctional Repair Stand

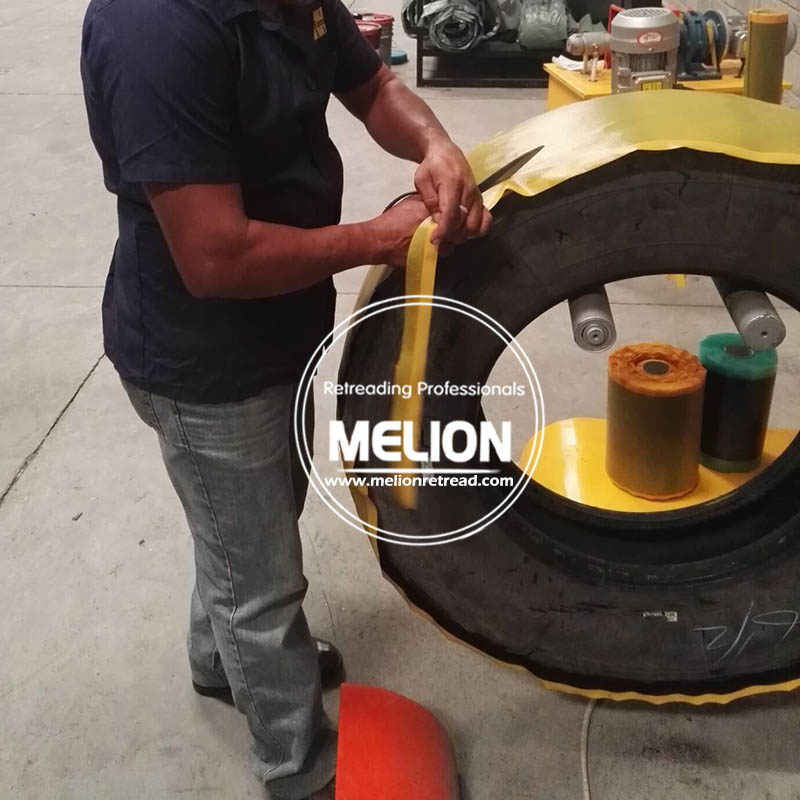

Brush Liquid Rubber

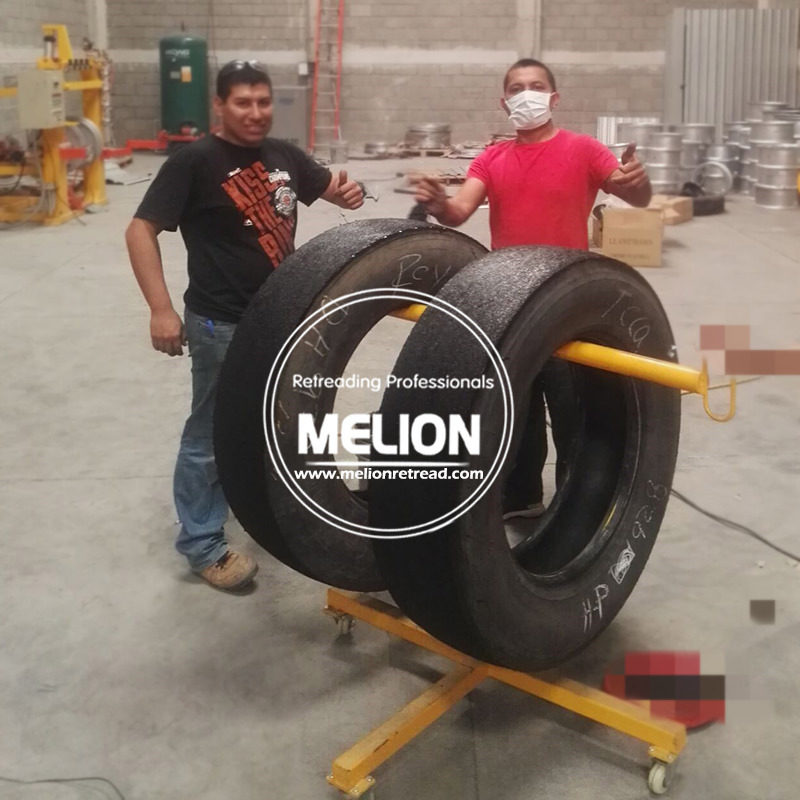

Tire Cart
| Description | Specification |
|---|---|
| Machine Model | ML-XTJ-M |
| Dimension | 1200*1000*1500 mm |
| Electricity | 380V,50Hz,3Ph |
| Tire Rotate Control | Foot Switch |
| Weight | 100 kg |
| Manufacturer | MELION INDUSTRY |
As a tire retreading machines specialized manufacturing supplier who providing Turn-Key Service, Melion Industry company provides customers with complete solutions all the time, including professional marketing planning, production line procedure analysis, suitable raw materials supply, free technical training and so on.
Complete Set Tire Retreading Equipment Supplies:
Initial Inspection Machine, Buffing Machine, Dust Collector, Multi-functional Repair Stand, Extruder Machine, Cement Mixing Tank, Building Machine,Envelope Spreader,Rims Mounting Machine, Monorail, Curing Chamber, Pressure Test Machine etc.
