The built tires with new tread will be mounted with Outer Envelope and Curing Rim to prepare for next procedure of Curing.
- Model: ML-BFT-H
- Min. Air Supply: 0.65 Mpa
- Dimension: 1600*1500*2200 mm
- Weight: 350 Kg
Envelope Spreader
Description
| Description | Specification |
|---|---|
| Machine Model | ML-BFT-H |
| Dimension | 1600*1500*2200 mm |
| Power | Pneumatic |
| Min. Air Supply | 0.65 Mpa |
| Weight | 350 kg |
| Manufacturer | MELION INDUSTRY |
Our Services
As a tire retreading machines specialized manufacturing supplier who providing Turn-Key Service, Melion Industry company provides customers with complete solutions all the time, including professional marketing planning, production line procedure analysis, suitable raw materials supply, free technical training and so on.
What We Supply
Complete Set Tire Retreading Equipment Supplies:
Initial Inspection Machine, Buffing Machine, Dust Collector, Multi-functional Repair Stand, Extruder Machine, Cement Mixing Tank, Building Machine,Envelope Spreader,Rims Mounting Machine, Monorail, Curing Chamber, Pressure Test Machine etc.
Rubber Materials
Main Structure

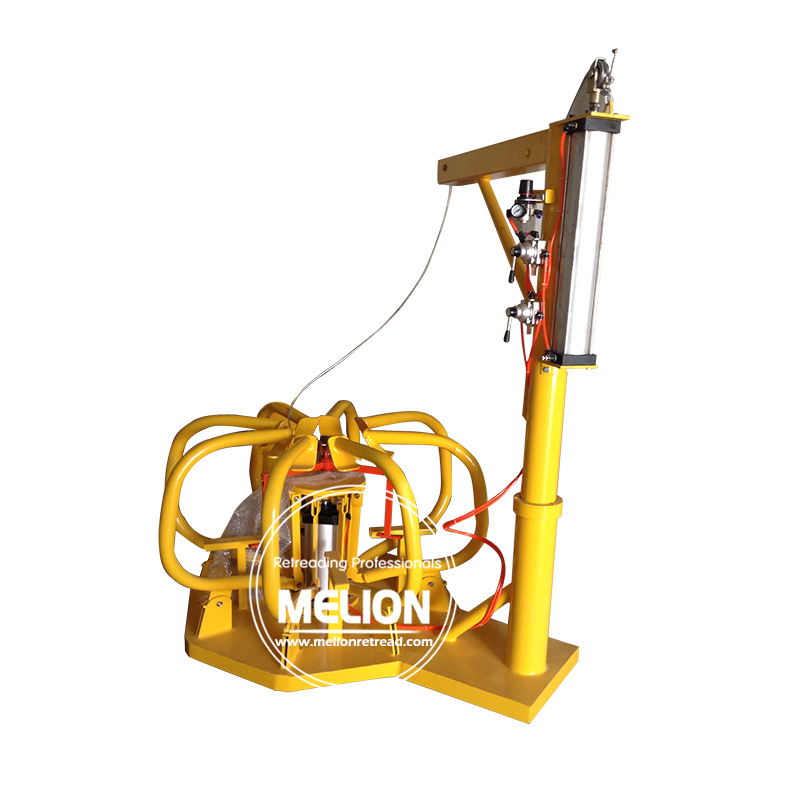

The MELION Envelope Spreader Machine mainly consists of Base Plate, Turn Column, Lifting Arm, Gripper, Spreading Arm, Spreading Cylinder and Lifting Cylinder. It also equipped with Pressure Regulating Valve and Hand Switch Valve.
Simple Description
Envelop Spreader is used to change outer envelope during the pre-cure retreading process. It alleviate the work load for the workers during the envelopes change. It also saves huge amount of man power and time. This increases work efficiency and prolongs the service life of the envelops.
Tire Retreading Machines

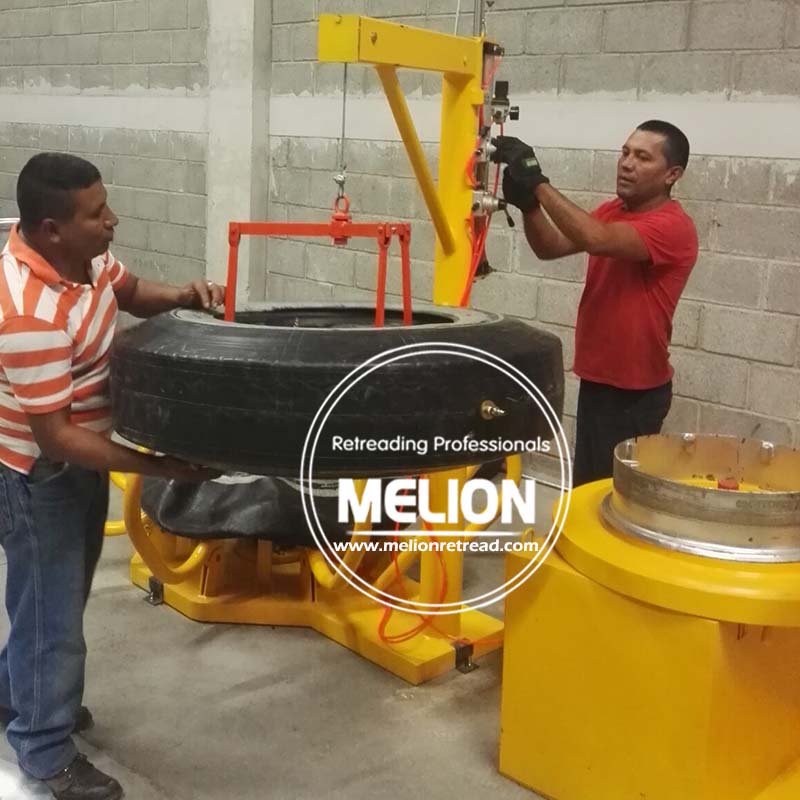

Enveloping Tire
After Enveloping
Operations of Melion Envelope Spreader
Before wrapping the envelope, it shall be put on the Holding Pads of the Spreading Arms. Operate the air cylinder and drive the Spreading Arms outwards to spread the Envelope. Then open the Gripper and grip the rim, and then lift the tire up with the cylinder-driven cable wire and guiding pulley. Rotate the lifting arm and lower the tire into the center of the Spreading Arms, and then put it into the envelope. Manipulate the Air Cylinder to retrieve the Spreading Arms and release the Spreading Pads off the Envelope. Then lift the tire out of the Spreader. By then, enveloping is completed. De-enveloping is the inverse process of enveloping.
